Description Metric
백해드
(탑서브)
API 3-1/2" REG PIN
외경 142mm
피스톤 외경 118mm
길이
(탑서브 포함)
1,294mm
타입 DHD360
QL60
무게 99kg
비트 적용 범위 152-225mm

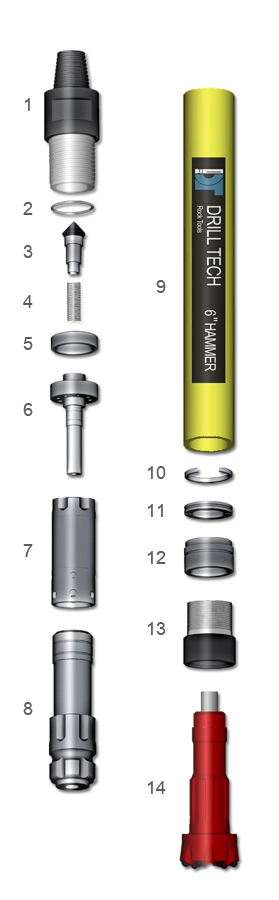

Part List

No Description Part Number Weight
1 Back head(Top sub) DT-R06001 20
2 "O"_ring of top sub DT-R06002 0.02
3 Chek Valve DT-R06003 1
4 Spring DT-R06004 0.5
5 Make-up ring DT-R06005 2.2
6 Air Distributor DT-R06006 4
7 Inner Cylinder DT-R06007 8
8 Piston DT-R06008 22
9 Cylinder DT-R06009 30
10 Spacer DT-R06010 2.5
11 Piston Retaining Ring DT-R06011 0.3
12 Bit Retaining Ring DT-R06012 0.8
13 Drive Chuck DT-R06013 7.6
14 Drill bits DT-R06014 22
