| Description |
Metric |
백해드
(탑서브) |
API 2-3/8" REG PIN |
| 외경 |
78mm |
| 피스톤 외경 |
63mm |
길이
(탑서브 포함) |
924mm |
| 타입 |
DHD330 |
| 무게 |
23kg |
| 비트 적용 범위 |
85-127mm |
|

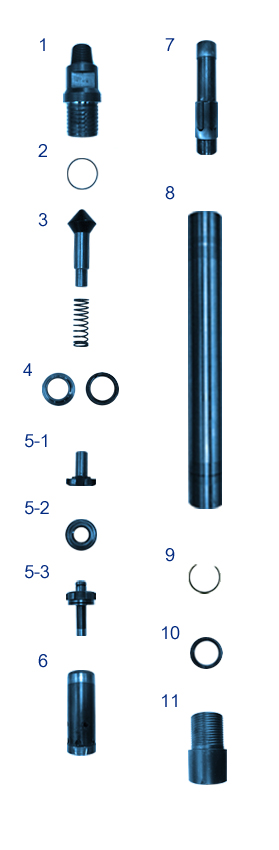

Part List |
 |
| No |
Description |
| 1 |
Back head(Top sub) |
| 2 |
Ring of Top Sub |
| 3 |
Chek Valve & Spring |
| 4 |
Make-up ring & Lock ring |
| 5-1 |
Air Distributor |
| 5-2 |
Air Distributor |
| 5-3 |
Air Distributor |
| 6 |
Inner Cylinder |
| 7 |
Piston |
| 8 |
Wear Sleeve |
| 9 |
Piston Retaining Ring |
| 10 |
Bit Retaining Ring |
| 11 |
Drive Chuck |
|
|
